The "Elektra" series from Köttgen impresses with high load capacity, construction heights of up to 45 m and lifelong reliability.
Flexible use in automated and semi-automated warehouses – for maximum space utilisation and performance.

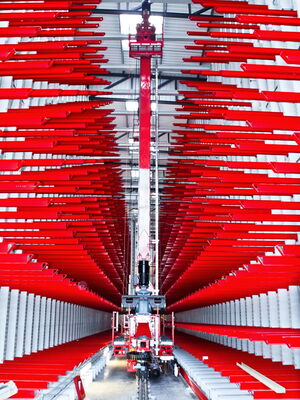

The "Elektra" series comprises Köttgen's single-mast stacker cranes and offers a wide range of solutions for standard load carriers such as pallets and mesh boxes with maximum load weights of 2,200 kg. In the standard version, these devices can be implemented up to a height of 45 metres.
The design of the single-mast stacker cranes is based on a modular principle, which enables the equipment to be efficiently and economically mapped throughout its entire life cycle, from design to maintenance.The design is geared towards a long service life of > 25 years with low weight.
This approach also allows for adaptation to special solutions with minimal effort, as the basic design already allows for a wide range of applications and the standard equipment can largely be retained for special solutions.
In addition to their use in automated systems, single-mast stacker cranes can also be operated in semi-automatic or manual mode. This allows them to be used in manual order picking systems as well as in fully automated warehouses with high throughput. The compact design of single-mast stacker cranes allows for efficient use of space and high storage capacity. In combination with double-deep storage using a telescope or multi-deep storage with a shuttle as a load handling device, the efficiency of space utilisation can be maximised even further. This means that investment costs can be kept to a minimum when the requirements are appropriate.
If maximum performance is required, Köttgen single-mast stacker cranes are also impressive across the board. With simple, low storage and high acceleration and speed values, outstanding handling figures are achieved in the warehouse, even under demanding operating conditions. This means that we can design the ideal system for every customer requirement and adapt it optimally to the respective area of application.
The sophisticated mechanics of our single-mast stacker cranes are complemented by Köttgen's own control software, which ensures excellent driving performance of the equipment. The Köttgen software enables wear-optimised operation of the equipment, thereby reducing maintenance and repair costs. Together with the maintenance-friendly designs, this results in low maintenance costs.
The safety of single-mast stacker cranes is just as much a focus for Köttgen engineers as energy optimisation.
All standard assemblies were subjected to intensive FEM calculations and the stacker cranes were designed and manufactured in accordance with the latest safety regulations.
We maintain long-standing partnerships with our suppliers in order to always be able to offer the highest level of safety.
For energy optimisation, Köttgen also supplies single-mast storage and retrieval machines with feed-in and feedback modules. This can save up to 25% energy in the area of storage and retrieval machine drives. This further increases the cost-effectiveness and sustainability of the storage and retrieval machines.
Köttgen's single-mast stacker cranes from the Elektra series enable reliable goods flow in your high-bay warehouse for standard load carriers with small to medium dimensions.

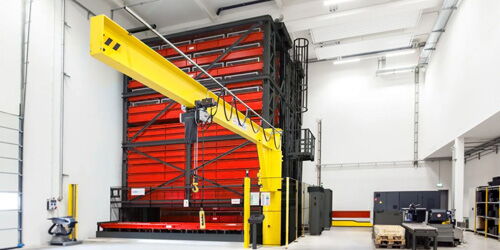

In addition to this product, Köttgen offers a wide range of high-performance solutions for warehousing and logistics. Discover more storage and retrieval machines, load handling attachments and storage systems.
